Turbosmart GenV WG45 HyperGate45 14psi

GenV WG45 HyperGate45 External Wastegate The GenV WG45 HyperGate45 is a motorsport-proven, cost-effective 45mm external wastegate, recognized as the highest-flowing gate of its kind. The GenV range offers extensive user configuration, exceptional thermal performance, fatigue resistance, and top-tier flow performance for optimal control and longevity. The GenV External Wastegate from Turbosmart represents a complete redesign of a classic, with only the mounting orientation carried over from the Gen4 range. It features CFD-optimized and in-house validated designs for superior flow and thermal management. The GenV range surpasses all other gates in features, options, and performance. Features:

• Advanced Design: A ground-up rework with enhanced features. Direct fit upgrade to all Gen4 Turbosmart wastegates.
• CFD Optimized: Maximizes flow and thermal management.
• Unique Collar-Locking System: Ensures secure fitting.
• Variable Actuator Cap and Base: Allows 360-degree routing of reference hoses.
• Strap-Type V-Band Clamps: Provides secure connection.
• Optional Liquid-Cooling Provision: Enhances thermal management.
• 1/8″ NPT Reference Ports: For flexible installation.
• Full Range of Available Springs: Provides tuning flexibility.

Available In:

• Black

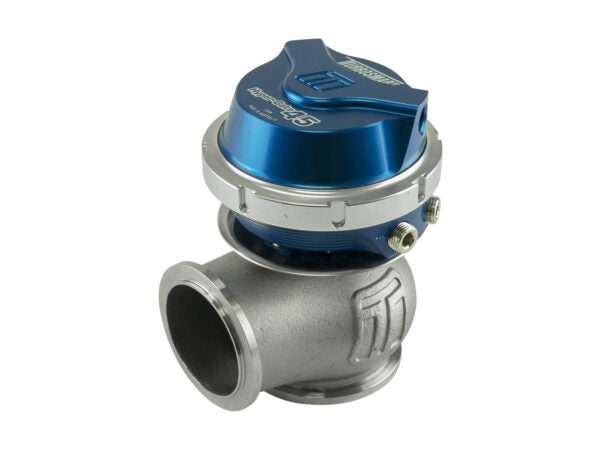

• Blue

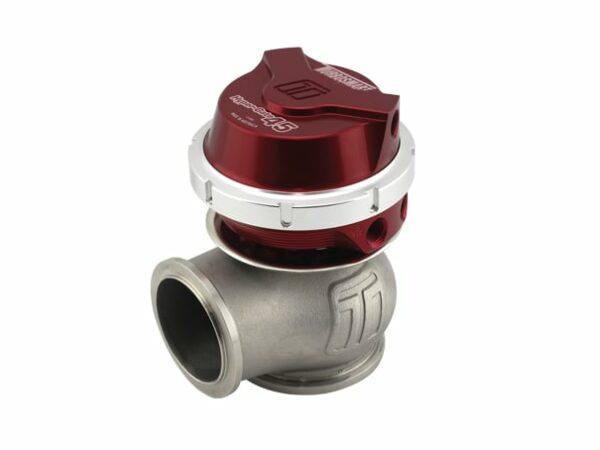

• Red

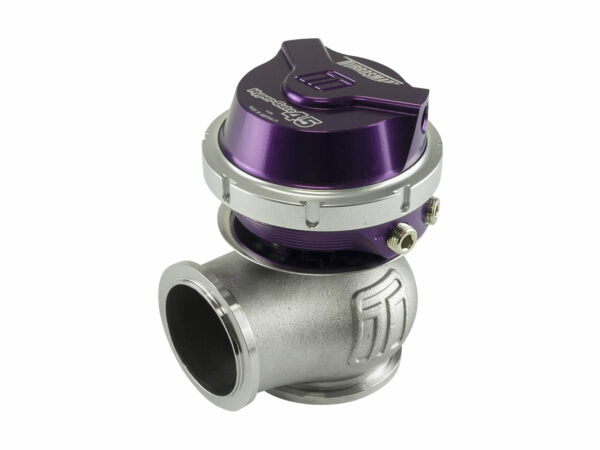

• Purple
• Sleeper colours

Optional Versions:

• Wastegate Position Sensor Upgrade
• Compressed Gas (e.g., CO2) Version
• Motorsport/Extreme Temp Version
• Electronically Actuated (eWG) Version
• High Pressure (Up to 50psi Base) Version

Features:

• Class-Leading Thermal Performance: Handles extreme conditions effectively.
• Class-Leading Flow Performance: CFD and bench validated for superior performance.
• Class-Leading Fatigue Resistance: Engineered for durability.
• Optional Liquid Actuator Cooling: Further enhances thermal management.
• Optional Position Sensor: Available separately for advanced monitoring.
• Rotatable/Clockable Actuator Housing: Flexible installation options.
• Materials:
  • Nitronic 60 Valve Guide
  • High-Temperature 347 Stainless Steel Body
  • 17-7 PH Stainless Steel Springs
• Strap-Type V-Band Clamps: Ensures secure and stable mounting.

Supplied With:

• GenV Wastegate Unit
• All Springs Included (3psi, 5psi, 7psi, 14psi; one installed as per description)
• Locking Collar Tool
• GenV SS316 Valve Seat
• Strap-Type V-Bands
• Inlet & Outlet Weld Flanges
• Hose Tail & Blank Fitting Kit
• Turbosmart Decal
