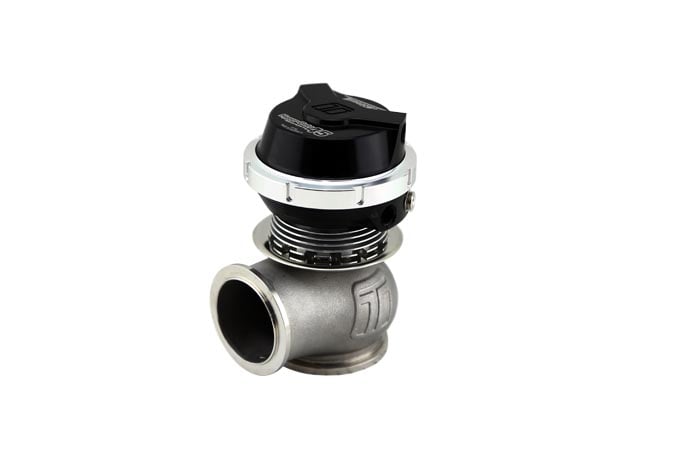

Turbosmart GenV WG45M HyperGate45 Motorsport 14psi Black - TS-0553-1102

GenV Motorsport Range The GenV Motorsport Range enhances the GenV modular series of external wastegates with a CFD-designed and real-world validated heatsink positioned between the wastegate body and the actuator. This Motorsport version extends the distance between these components, utilizing convection and physical shielding to prevent harmful heat from reaching the actuator. This setup not only improves valve and guide cooling but also maximizes service life in high-stress environments, making it ideal for the extreme conditions found in endurance motorsport. GenV WG45 HyperGate45 Motorsport External Wastegate The GenV WG45 HyperGate45 Motorsport External Wastegate is a cost-effective 45mm wastegate engineered for extreme temperatures and significant thermal demands. Building on the robust architecture of the GenV range, this Motorsport version includes an additional CFD-driven heatsink to enhance heat dissipation and further isolate the actuator from thermal stress. The GenV WG45 HyperGate45 provides extensive user configurability, world-leading thermal performance, fatigue resistance, and top-tier flow performance for optimal control and longevity. It is a direct-fit upgrade to all Gen4 Turbosmart wastegates and features:

• CFD-Driven Heatsink Design: Advanced thermal management to withstand extreme temperatures.
• Class-Leading Thermal Performance: Superior heat dissipation and isolation.
• Class-Leading Flow Performance: CFD and bench-validated for maximum efficiency.
• Class-Leading Fatigue Resistance: Designed for durability in harsh conditions.
• Optional Liquid Actuator Cooling: For enhanced thermal management.
• Rotatable/Clockable Actuator Housing: Flexible installation options.
• 45mm V-Band Fitment: Compatible with various setups.
• Nitronic 60 Valve Guide & High-Temp 347 SS Body: High-quality materials for longevity.
• 17-7 PH Stainless Steel Springs: For robust performance and reliability.
• Strap Type V-Band Clamps: Secure and easy installation.

Available In:

• 40mm CompGate40M - TS-0552-1102
• 45mm HyperGate45M - TS-0553-1102

Supplied With:

• GenV Wastegate Unit
• All Springs Included (3, 5, 7, 14psi; 1 installed as per description)
• Locking Collar Tool
• GenV SS316 Valve Seat
• Strap Style V-Bands
• Inlet & Outlet Weld Flanges
• Hose Tail & Blank Fitting Kit
• Turbosmart Decal
