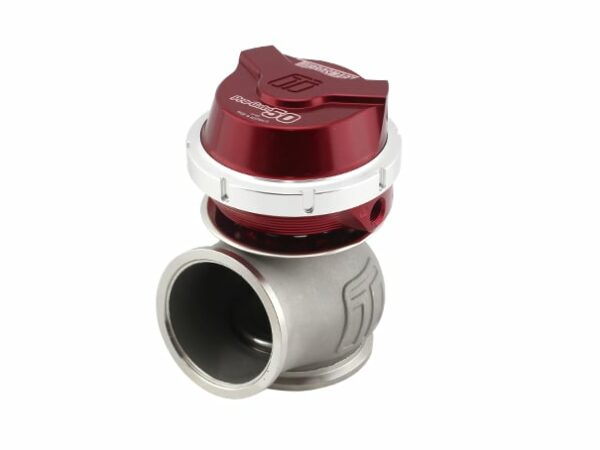

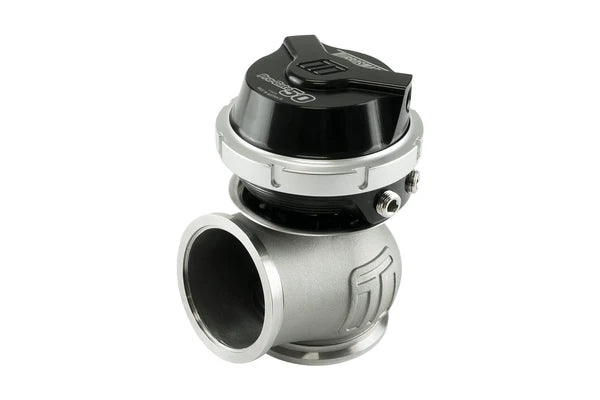

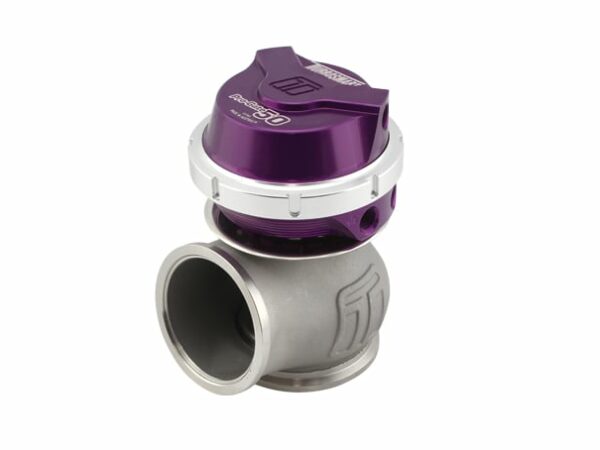

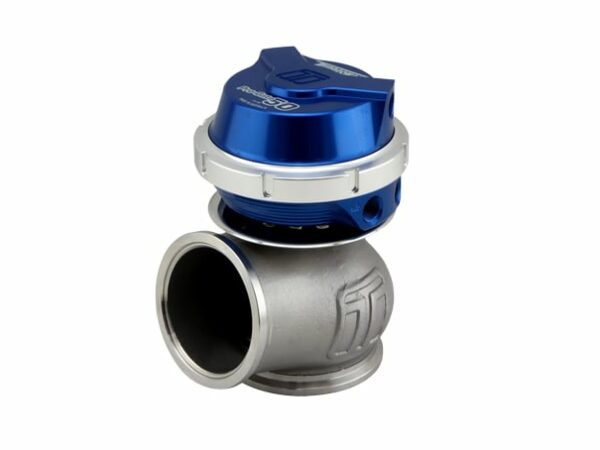

Turbosmart GenV WG50 ProGate50 14psi

GenV WG50 ProGate50 External Wastegate The GenV WG50 ProGate50 is a Motorsport-proven, cost-effective 50mm external wastegate, renowned as the highest flowing 50mm external wastegate in the world. It offers extensive user configurability, exceptional thermal performance, fatigue resistance, and best-in-class flow performance for optimal control and longevity. Built from the ground up, the GenV WG50 ProGate50 incorporates a reworked design with only the mounting orientation carried over from the Gen4 range. CFD optimized and validated in-house, this wastegate delivers maximum flow and thermal management. The GenV range outperforms other wastegates with its advanced features and options. Direct Fit Upgrade: Compatible with all Gen4 Turbosmart wastegates, featuring:

• Unique Collar-Locking System: Provides secure and reliable connections.
• Variable Actuator Cap and Base: Allows 360-degree optional routing of reference hoses.
• Strap-Type V-Band Clamps: Ensures robust mounting.
• Optional Liquid-Cooling Provision: Enhances thermal management.
• 1/8″ NPT Reference Ports: For precise pressure measurement.
• Full Range of Available Springs: To suit various boost levels.

Available In:

• Black
• Blue
• Red
• Purple
• Sleeper Colours

Optional Versions:

• Wastegate Position Sensor Upgrade: Available separately.
• Compressed Gas (e.g., CO2) Version: For specialized applications.
• Electronically Actuated (eWG) Version: For advanced electronic control.

Features:

• Class-Leading Thermal Performance: Designed to handle extreme temperatures.
• Class-Leading CFD Driven & Bench Validated Flow Performance: Optimized for superior efficiency and power.
• Class-Leading Fatigue Resistance: Built to withstand high-stress conditions.
• Optional Liquid Actuator Cooling: For enhanced performance under demanding conditions.
• Optional Position Sensor Available Separately: For precise tuning and monitoring.
• Rotatable / Clockable Actuator Housing: Flexible installation options.
• 50mm V-Band Fitment: Ensures compatibility with various setups.
• Nitronic 60 Valve Guide & High Temp 347 SS Body: For durability and heat resistance.
• 17-7 PH Stainless Steel Springs: Guarantees reliable operation.
• Strap-Type V-Band Clamps: Provides secure and adaptable mounting.

Supplied With:

• GenV Wastegate Unit
• All Springs Included (3, 5, 7, 14psi; 1 installed as per description)
• Locking Collar Tool
• GenV SS316 Valve Seat
• Strap-Type V-Bands
• Inlet & Outlet Weld Flanges
• Hose Tail & Blank Fitting Kit
• Turbosmart Decal
