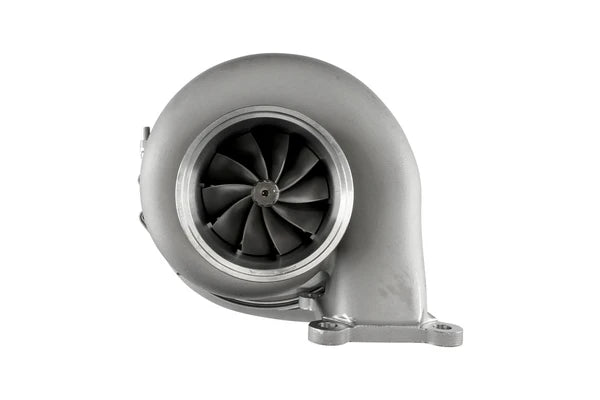

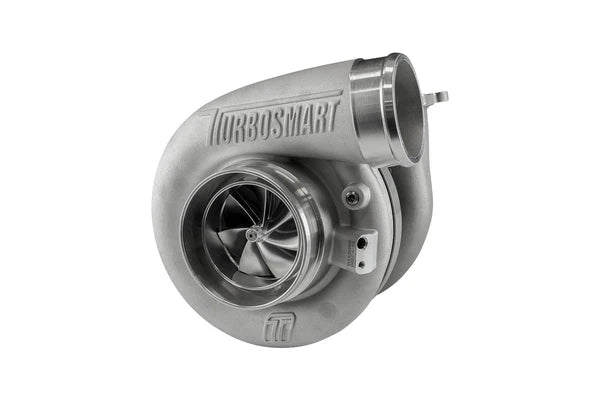

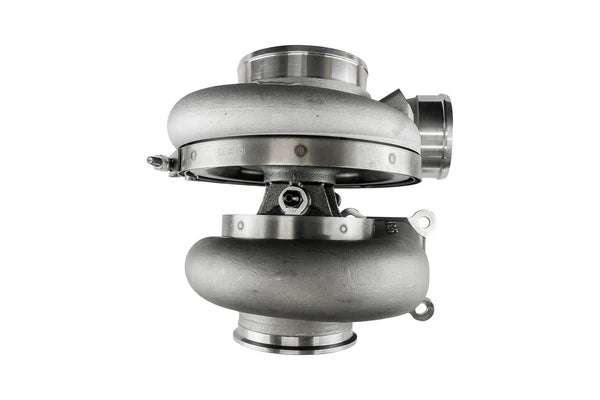

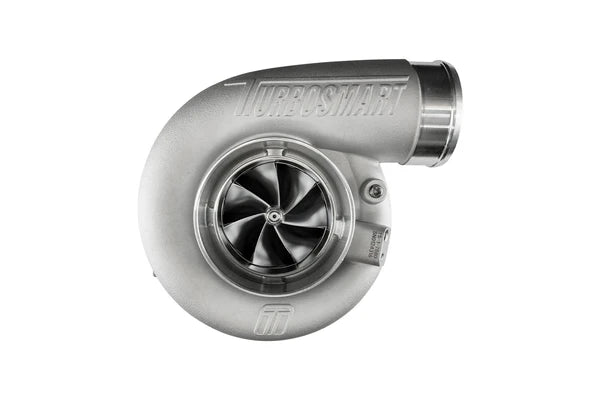

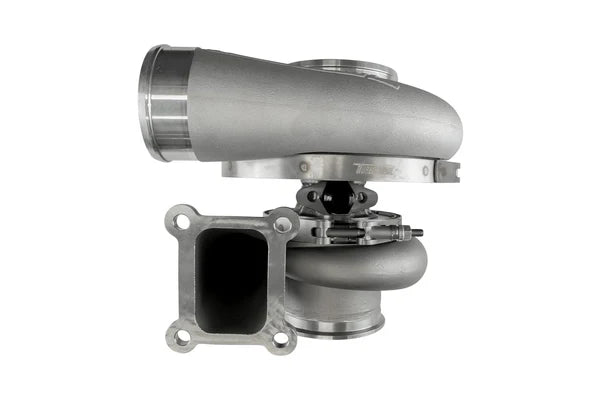

Turbosmart TS-1 Turbocharger 7880 T4 1.24AR Externally Wastegated - TS-1-7880C-T4124E

TS-1 Performance Turbocharger 7880 T4 1.24AR Externally Wastegated - SKU: TS-1-7880C-T4124E The Turbosmart TS-1 turbocharger series sets a new standard in performance with cutting-edge materials and advanced engineering. Designed for both motorsport and high-performance enthusiasts, the TS-1 7880 offers exceptional power and responsiveness in a compact, lightweight package. Key Features:

• Unmatched Transient Response: Achieve rapid spool-up and dynamic performance with the TS-1’s low rotating mass and advanced bearing technology.
• Aggressive Compressor Aerodynamics: Features 7+7 splitter wheels for improved efficiency and power delivery.
• Lightweight Construction: Includes 310s stainless steel investment cast turbine housings and lightweight aluminum compressor covers for reduced weight and increased durability.
• Optimized Design: CFD-driven housing designs ensure optimal A/R ratios and flow characteristics.
• Inconel Turbine Wheel: T14 Inconel wheel is engineered to withstand extreme exhaust gas temperatures and maintain performance under high loads.
• Precision Balanced: VSR (Vibration Speed Ratio) balanced to ensure smooth operation and longevity.
• Proprietary Bearing System: Dual ceramic bearings enhance reliability and performance.
• Integrated Iron Backplate: Provides additional strength and durability in the center housing.

Specifications:

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 78mm
• Turbine Inlet: T4
• Turbine Exducer: 80mm
• Turbine AR: 1.24
• Turbine Outlet: V-Band (3.50″)
• Weight: 9.63 kg / 21.23 lbs
• Horsepower Rating: 1275-1425 HP

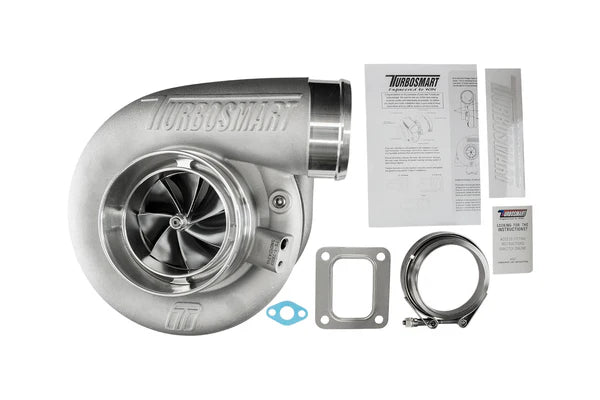

Included with Purchase:

• Weld flanges
• V-band clamps
• Gaskets
• Oil feed and drain fittings

The TS-1 Performance Turbocharger 7880 is engineered to push the boundaries of performance, offering a blend of power, reliability, and responsiveness for serious applications.
